from sklearn.cluster import KMeans
from mr_toolkit.clustering import StratifiedClusters
import numpy as np
import matplotlib.pyplot as plt

Stratified Clustering Demo

Stratified clustering is like a hierarchical k-means clustering. A set of bins are defined, and k-means is independently performed in each bin.

We’re going demonstrate this by taking a dataset and splitting it up into 6 clusters.

First, we’ll cluster it with standard k-means.

Then, we’ll stratify in both x and y. We’ll define 2 stratum boundaries, which makes 3 strata.

Create some sample data

colors = np.array(['tab:red', 'tab:orange', 'tab:cyan', 'tab:blue', 'tab:pink', 'tab:purple'])

# Number of clusters to place in each stratum
n_clusters = 2

sample_data = np.array([
    [3.0, 23],
    [3.5, 27],
    [4.5, 87],
    [6.0, 14],
    [6.2, 8],
    [5.3, 91],
    [8.4, 33],
    [8.7, 32],
    [8.9, 80],
])

plt.scatter(*sample_data.T)

<matplotlib.collections.PathCollection at 0x7fe2b5bf0790>

Standard K-means clustering

kmeans = KMeans(n_clusters=n_clusters*3, n_init='auto')
cluster_assignments = kmeans.fit_predict(sample_data)

plt.scatter(*sample_data.T, color=colors[cluster_assignments])

<matplotlib.collections.PathCollection at 0x7fe2b5ae6b90>

Stratify on the first dimension

vertical_bounds = np.array([5, 7])

clusterer = StratifiedClusters(n_clusters, bin_bounds=vertical_bounds)

clusterer.fit(sample_data, coord_to_stratify=0)

vertical_assignments = clusterer.predict(sample_data)
vertical_assignments

array([0, 0, 1, 2, 2, 3, 5, 5, 4])

plt.scatter(*sample_data.T, color=colors[vertical_assignments])

for bound in vertical_bounds:
    plt.axvline(bound, color='gray')

Stratify on the second dimension

horizontal_bounds = np.array([25, 50])

clusterer = StratifiedClusters(n_clusters, bin_bounds=horizontal_bounds)

clusterer.fit(sample_data, coord_to_stratify=1)

horizontal_assignments = clusterer.predict(sample_data)
horizontal_assignments

array([0, 3, 4, 1, 1, 4, 2, 2, 5])

plt.scatter(*sample_data.T, color=colors[horizontal_assignments])

for bound in horizontal_bounds:
    plt.axhline(bound, color='gray')

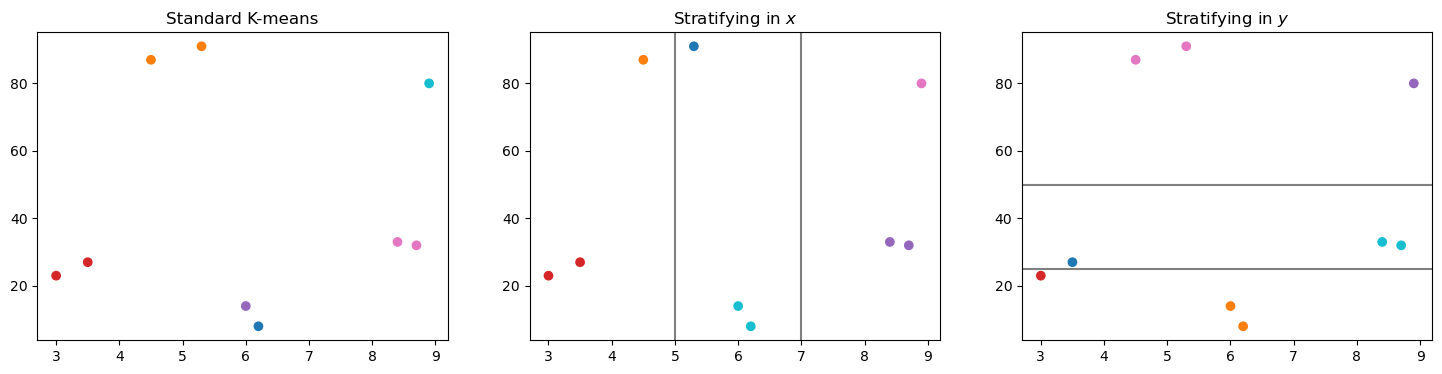

Compare all

fig, axs = plt.subplots(nrows=1, ncols=3, figsize=(18,4))


axs[0].set_title("Standard K-means")
axs[0].scatter(*sample_data.T, color=colors[cluster_assignments])


axs[1].set_title("Stratifying in $x$")
axs[1].scatter(*sample_data.T, color=colors[vertical_assignments])
for bound in vertical_bounds:
    axs[1].axvline(bound, color='gray')


axs[2].set_title("Stratifying in $y$")
axs[2].scatter(*sample_data.T, color=colors[horizontal_assignments])
for bound in horizontal_bounds:
    axs[2].axhline(bound, color='gray')
